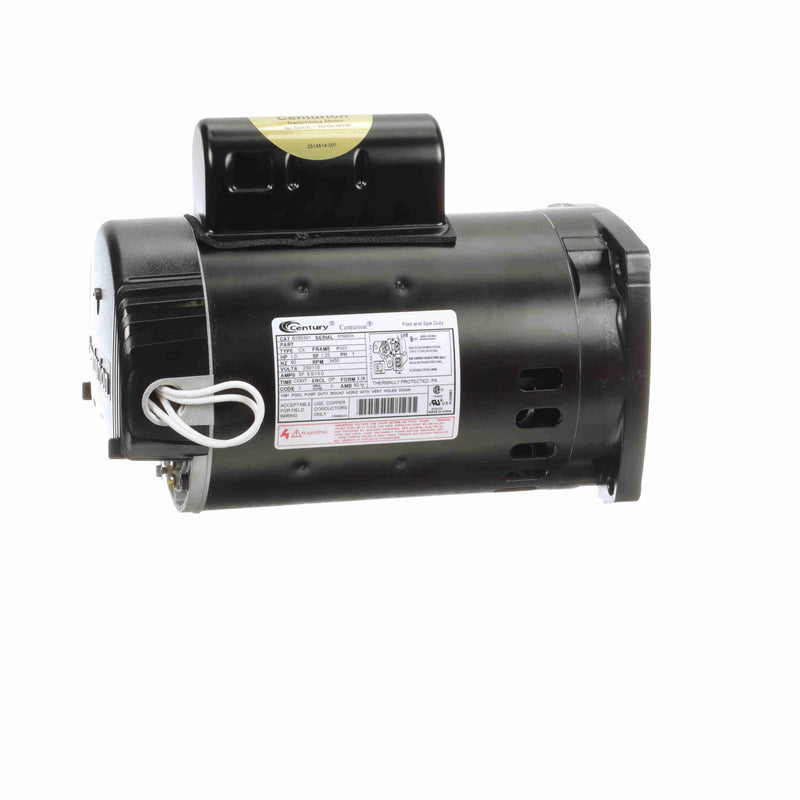

Century MODEL-CFHP-56FR 1HP 115/230V UR P56Y ODP SQFL Motor - B2853V1

Ahorrar 43%

Precio:
Precio de venta$279.99 Precio habitual$488.80
Stock:
Agotado

Retiro no disponible actualmente en The Pool Supply Warehouse

Envíos con cero emisiones de carbono con Shopify Planet
Envíos neutros en carbono en todos los pedidos
2,367kg
emisiones por envíos eliminadas
Equivalente a...
6,059
millas recorridas por un vehículo de gasolina promedio
Financiamos innovaciones en...
Captura directa de aire
Biopetróleo
Mineralización

General Specifications

UPC: 786674071644 Packaged Length: 15.98
Packaged Width: 10.75 Packaged Height: 9.13

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: SF 6.5/13.0 A Speed: 3450 rpm
Service Factor: 1.25 Phase: 1
Duty: Continuous Insulation Class: F
Frame: P56Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage Poles: 2
Rotation: Counterclockwise Pump End Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: 1/2 Threaded Overall Length: 12.44 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: .910 in
