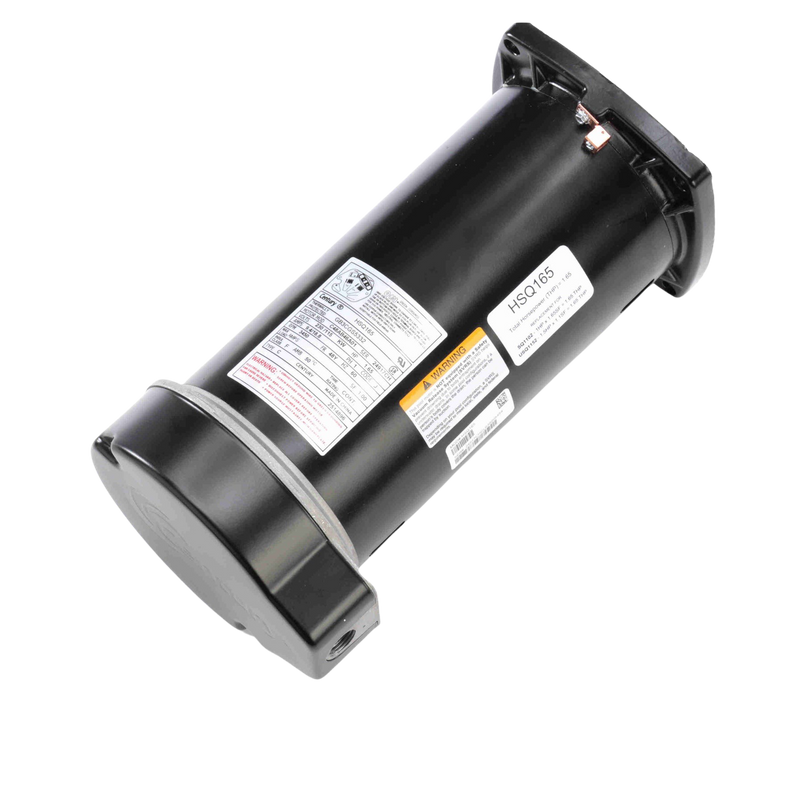

Century® 1.65 THP Square Flange Pool and Spa Pump Motor - HSQ165

Ahorrar 41%

Precio:
Precio de venta$324.99 Precio habitual$554.24
Stock:
Solo queda 1 unidad

Retiro disponible en The Pool Supply Warehouse

Normalmente está listo en 24 horas

Envíos con cero emisiones de carbono con Shopify Planet
Envíos neutros en carbono en todos los pedidos
3,127kg
emisiones por envíos eliminadas
Equivalente a...
8003
millas recorridas por un vehículo de gasolina promedio
Financiamos innovaciones en...
Captura directa de aire
Biopetróleo
Mineralización
Century® Centurion® Pro HSQ165 Square Flange Pool and Spa Pump Motor; 1.65 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
  • Professional grade
  • Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
  • PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
  • Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
  • Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
  • 203 Bearings both ends
Ambient Temperature50° C
Bearing TypeSealed Ball
BrandRegal Beloit
Diameter5-5/8 Inch
Duty CycleContinuous
Enclosure DesignOpen Drip Proof
Finish ColorSatin Black
Flange TypeSquare
Frame48Y
Frequency Rating60 Hz
Full Load Amps18.8/9.4 A
Insulation ClassB
ItemPool and Spa Pump Motor
Motor DesignCapacitor Start
Motor Shaft RotationCCWPE
Motor Thermal ProtectionAuto
Number of Speeds1-Speed
Overall Length12.03 Inch
Phase1-Phase
RPM3450
SeriesCenturion® Pro
Service Factor1.00
Shaft DesignThreaded
Shaft Diameter5/8 Inch
Shaft Material303 Stainless Steel
Standards ApprovalsUL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341)
Sub BrandCentury®
Thrust Horsepower1.65
TypeC
Voltage Rating115/230 V
