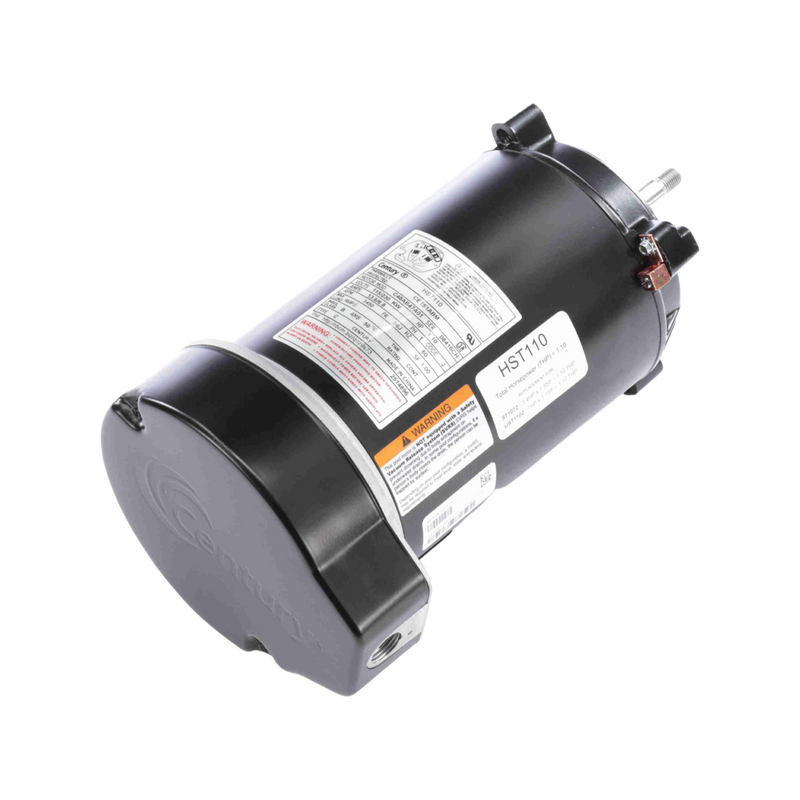

Century 1 HP Round Flange Motor - HST110


Precio:
Precio de venta$224.99 Precio habitual$445.90

Retiro disponible en The Pool Supply Warehouse

Normalmente está listo en 24 horas

Century® Centurion® Pro HST110 Pool and Spa Pump Motor; 1.1 THP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
  • Professional grade
  • Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
  • PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
  • Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
  • Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
  • 203 Bearings both ends
Ambient Temperature50° C
Bearing TypeSealed Ball
BrandRegal Beloit
Diameter6-1/2 Inch
Duty CycleContinuous
Enclosure DesignOpen Drip Proof
Finish ColorSatin Black
Frame56J
Frequency Rating60 Hz
Full Load Amps13.6/6.8 A
Insulation ClassB
ItemPool and Spa Pump Motor
Motor DesignCapacitor Start
Motor Shaft RotationCCWPE
Motor Thermal ProtectionAuto
Mounting TypeC-Face
Number of Speeds1-Speed
Overall Length11.84 Inch
Phase1-Phase
RPM3450
SeriesCenturion® Pro
Service Factor1.00
Shaft DesignThreaded
Shaft Diameter5/8 Inch
Shaft Length2-9/16 Inch
Shaft Material303 Stainless Steel
Standards ApprovalsUL Approved, UL Recognized (E20522), CSA Certified (LR43341)
Sub BrandCentury®
Thrust Horsepower1.1
TypeC
Voltage Rating115/230 V
