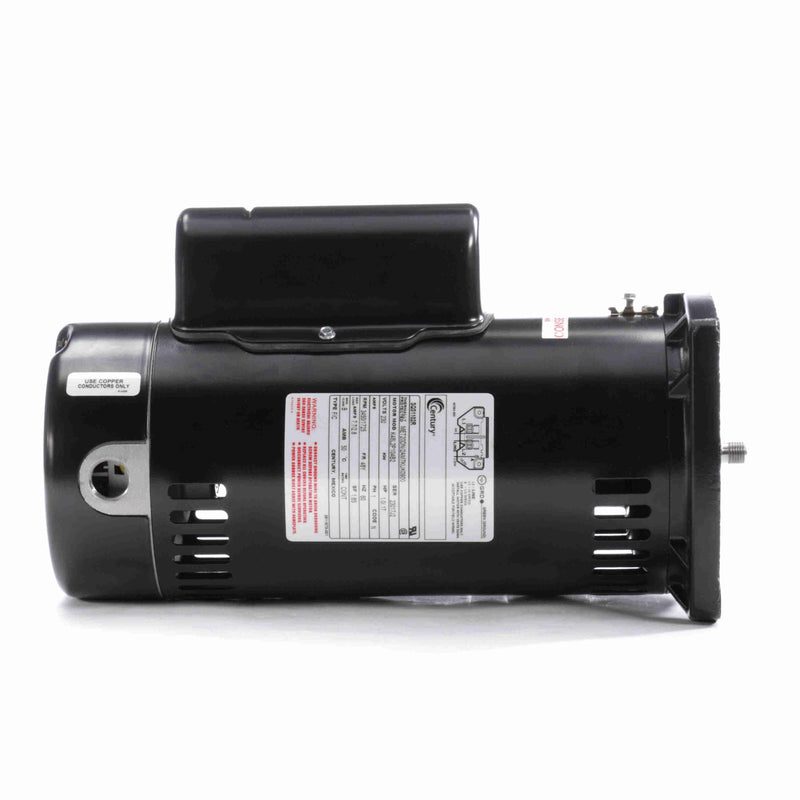

Century 1.0/.17 HP Pool Pump Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP - SQS1102R

Ahorrar 33%

Precio:
Precio de venta$488.89 Precio habitual$726.34
Stock:
Disponible

Retiro disponible en The Pool Supply Warehouse

Normalmente está listo en 24 horas

Envíos con cero emisiones de carbono con Shopify Planet
Envíos neutros en carbono en todos los pedidos
2,225kg
emisiones por envíos eliminadas
Equivalente a...
5,695
millas recorridas por un vehículo de gasolina promedio
Financiamos innovaciones en...
Captura directa de aire
Biopetróleo
Mineralización
Century® Square Flange 2-Speed Full-Rated Two-Compartment Pool Pump Motor; 1/0.17 HP, 3450/1725 RPM, 230 V, 48Y, Threaded Shaft
  • High service factor
  • Energy efficient
  • All copper windings
  • 1/2-20 UNF-2A RH threaded shaft
Ambient Temperature50 deg C
ApplicationMany Sta-Rite®, Red Jacket, and Sears Jet and Pool Pumps
Bearing TypeBall
BrandRegal Beloit
Diameter5-5/8 Inch
Duty CycleContinuous
Efficiency GroupStandard
Enclosure DesignOpen Dripproof
Finish ColorSatin Black
Flange TypeSquare
Frame48Y
Frequency Rating60 Hz
Full Load Amps7.7/2.8 A
HP1/0.17
Insulation ClassB
ItemTwo-Compartment Pool Pump Motor
Motor DesignCapacitor Start on Low Speed, PSC on High Speed
Motor Shaft RotationCCWPE
Motor Thermal ProtectionAuto
Mounting TypeC-Face
Number of Speed2-Speed
Overall Length13.81 Inch
Phase1-Phase
RPM3450/1725
Service Factor1.65
Shaft DesignThreaded
Shaft Diameter5/8 Inch
Shaft Material303 Stainless Steel
Standards ApprovalsUL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
Sub BrandCentury®
Thrust Horsepower1.65
TypeFull-Rated, F/C
Voltage Rating230 V
