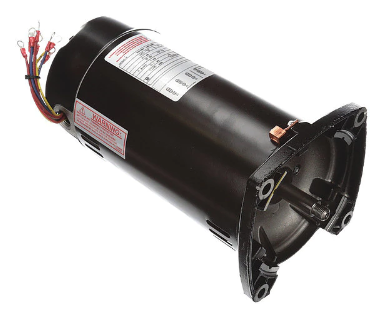

Century® 1-1/2 HP Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor - Q3152

Ahorrar 43%

Precio:
Precio de venta$474.99 Precio habitual$830.64
Stock:
Disponible

Retiro disponible en The Pool Supply Warehouse

Normalmente está listo en 24 horas

Envíos con cero emisiones de carbono con Shopify Planet
Envíos neutros en carbono en todos los pedidos
2,225kg
emisiones por envíos eliminadas
Equivalente a...
5,695
millas recorridas por un vehículo de gasolina promedio
Financiamos innovaciones en...
Captura directa de aire
Biopetróleo
Mineralización
Century® Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 1.5 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft
  • All copper windings
  • 1/2-20 UNF-2A RH threaded shaft
Ambient Temperature50° C
Bearing TypeSealed Ball
BrandRegal Beloit
Diameter5-5/8 Inch
Duty CycleContinuous
Efficiency GroupStandard
Enclosure DesignOpen Dripproof
Finish ColorBlack Lacquer
Flange MaterialAluminum
Flange TypeSquare
Frame48Y
Frequency Rating60 Hz
Full Load Amps6.8/3.4 A
HP1.5
Insulation ClassB
ItemPool and Spa Pump Motor
Motor Shaft RotationCCWPE
Motor Thermal ProtectionNone
Mounting TypeC-Face
Overall Length11.88 Inch
Phase3-Phase
RPM3450
Service Factor1.47
Shaft DesignThreaded
Shaft Diameter5/8 Inch
Shaft Length5/8 Inch
Shaft Material303 Stainless Steel
Standards ApprovalsUL Recognized (E46412), CSA Certified (LR43341)
Sub BrandCentury®
Thrust Horsepower2.21
TypeFull-Rated, P
Voltage Rating208-230/460 V
