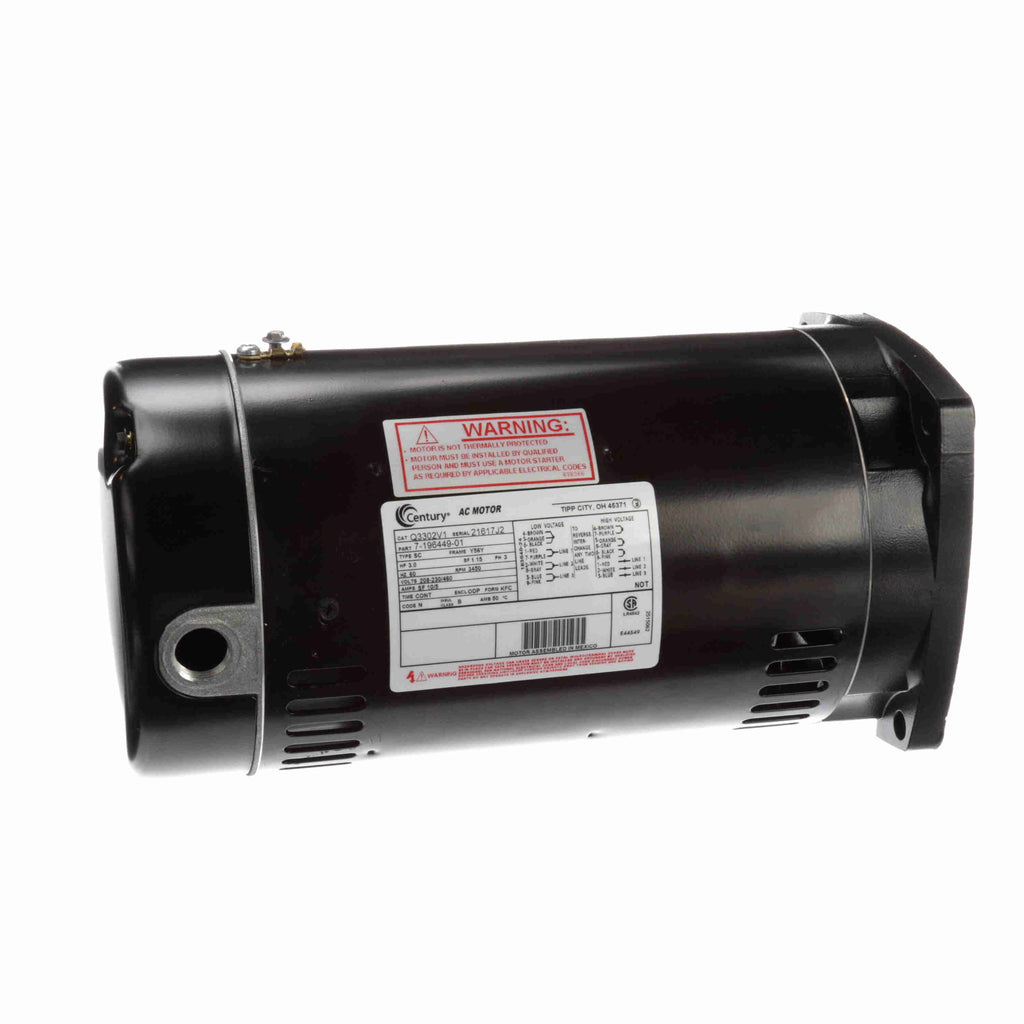

Century(R) Q3302V1 Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 3 HP, 3450 RPM, 208-230/460 V, 56Y, Threaded Shaft
- All copper windings
- 1/2-20 UNF-2A RH threaded shaft
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Material | Aluminum |
| Flange Type | Square |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 9.7/4.9 A |
| HP | 3 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | None |
| Mounting Type | C-Face |
| Overall Length | 12.00 Inch |
| Phase | 3-Phase |
| RPM | 3450 |
| Service Factor | 1.15 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL Approved, UL Recognized (E44549), CSA Certified (LR4642) |
| Sub Brand | Century® |
| Thrust Horsepower | 3.45 |
| Type | Full-Rated, SC |
| Voltage Rating | 208-230/460 V |
