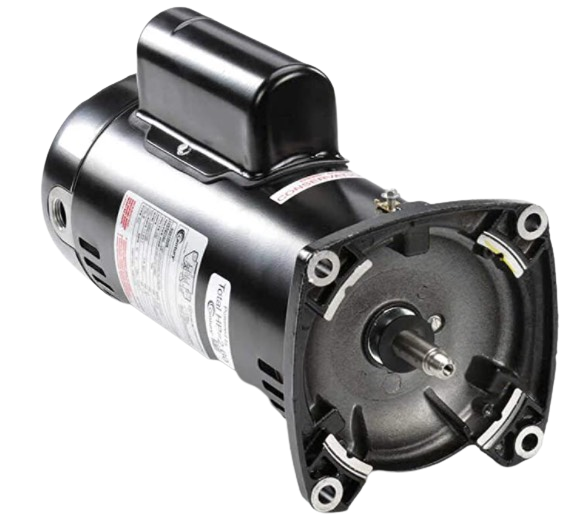

Century® SQS1202R Square Flange 2-Speed Full-Rated Two-Compartment Pool Pump Motor; 2/0.33 HP, 3450/1725 RPM, 230 V, 48Y, Threaded Shaft
- High service factor
- Energy efficient
- All copper windings
- 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft
| Ambient Temperature | 50° C |
| Application | Many Sta-Rite®, Red Jacket, and Sears Jet and Pool Pumps |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Drip Proof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 11.3/3.3 A |
| HP | 2/0.33 |
| Insulation Class | B |
| Item | Two-Compartment Pool Pump Motor |
| Motor Design | Capacitor Start on Low Speed, PSC on High Speed |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speeds | 2-Speed |
| Overall Length | 13.81 Inch |
| Phase | 1-Phase |
| RPM | 3450/1725 |
| Service Factor | 1.30 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008 |
| Sub Brand | Century® |
| Thrust Horsepower | 2.6 |
| Type | Full-Rated, F/C |
| Voltage Rating | 230 V |
