Nidec EQ Series DE4 Close Coupled Pump Full Rated Pool & Spa Motor - EEQK1000

Ahorrar 27%

Your inquiry was submitted successfully. You can expect to hear from us shortly. To expedite the quoting process plesae create an account.

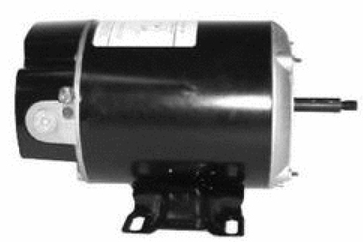

Nidec EEQK1000 EQ Series DE4 Close Coupled Pump Full Rated Pool & Spa Motor; Open Dripproof, 213JMZ, 10 HP, 3-Phase, 208-230/460 V, 27-26.2/13.1 A, Black
  • Special JMZ Mounting
  • Permanently Lubricated Ball Bearings
  • Black Paint
  • Stainless Steel Ground Lug
  • Premium Efficient, Full Service Factor
Ambient Temperature40° C
Bearing TypePermanently Lubricated Ball
BrandU.S. Motors
Duty CycleContinuous
Enclosure DesignOpen Drip Proof
Finish ColorBlack
Frequency Rating60 Hz
Full Load Amps27-26.2/13.1 A
HP Rating10
Insulation ClassF
ItemPool & Spa Motor
Mounting PositionF1 Assembly
Mounting TypeRigid Base
Nominal Efficiency90.2 %
Number of Speeds1
SeriesPentair EQ Series
Service Factor1.15
Shaft Material303 Stainless Steel
TypeDE4, Close Coupled Pump, Full Rated
Voltage Rating208-230/460 V
