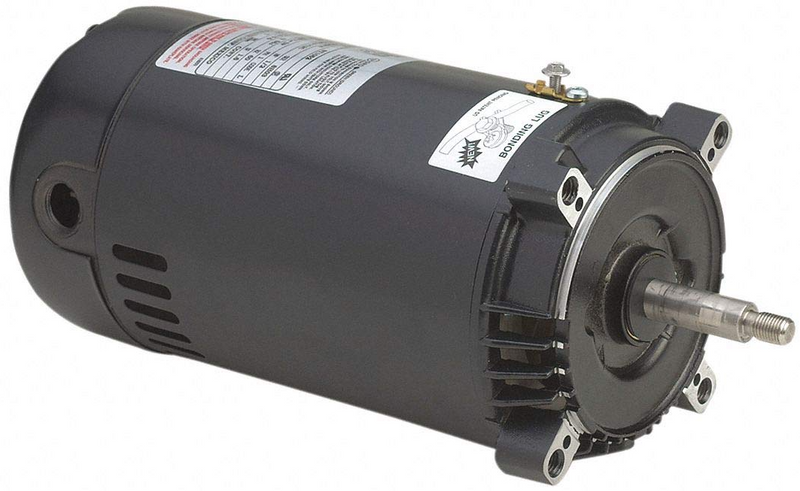

Century® UST1102 Up-Rated Two-Compartment Pool Filter Motor; 1 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
- Sealed switch design
- Low service factor
- 7/16-20 UNF-2A RH threaded shaft
| Ambient Temperature | 50° C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 15/7.5 A |
| HP | 1 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speeds | 1-Speed |
| Overall Length | 11.00 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.10 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 2-9/16 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.1 |
| Type | Up-Rated, UAC |
| Voltage Rating | 115/230 V |
