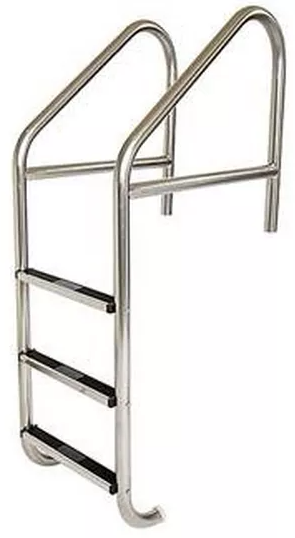

SR Smith LFB-24-3B-MG 3-Step 316L Marine Grade Stainless Steel Ladder with Crossbrace with 304 Stainless Steel Step; 66 Inch Height x 24 Inch Width
- Cross brace commercial ladder series are moderate height ladders with moderate to long reach
- The lower ends of the frames are bent to meet the pool wall and are fitted with white rubber bumpers
- The cross brace is continuously welded to the front and rear legs by a tungsten inert gas process
- The steps are constructed of polished 304 stainless steel with nominal dimensions of 3 Inch x 20 Inch. The step frames have replaceable, black, non-skid tread inserts
- Stainless steel treads will ensure that your ladder stays looking great for years to come
- With proper anchoring, the cross brace Ladder is suitable for use on poured concrete, shotcrete, fiberglass, and vinyl commercial pools and spas where a cross brace ladder is required as well as for other applications in most geographic areas
- Ladder extends 6-1/2 Inch from pool wall
- Frame is secured to the pool deck with two anchor sockets on 20 Inch centers
- Marine grade stainless steel is used for salt pools
| Application | For commercial use |
| Bend Radius | 6 Inch |
| Brand | SR Smith |
| Dimension | 66 Inch Height x 24 Inch Width |
| Item | Ladder with Crossbrace |
| Material | 316L Marine Grade Stainless Steel |
| Number of Steps | 3 |
| Step Material | 304 Stainless Steel |
| Tubing Size | 1.9 Inch O.D |
| Wall Thickness | 0.065 Inch |
