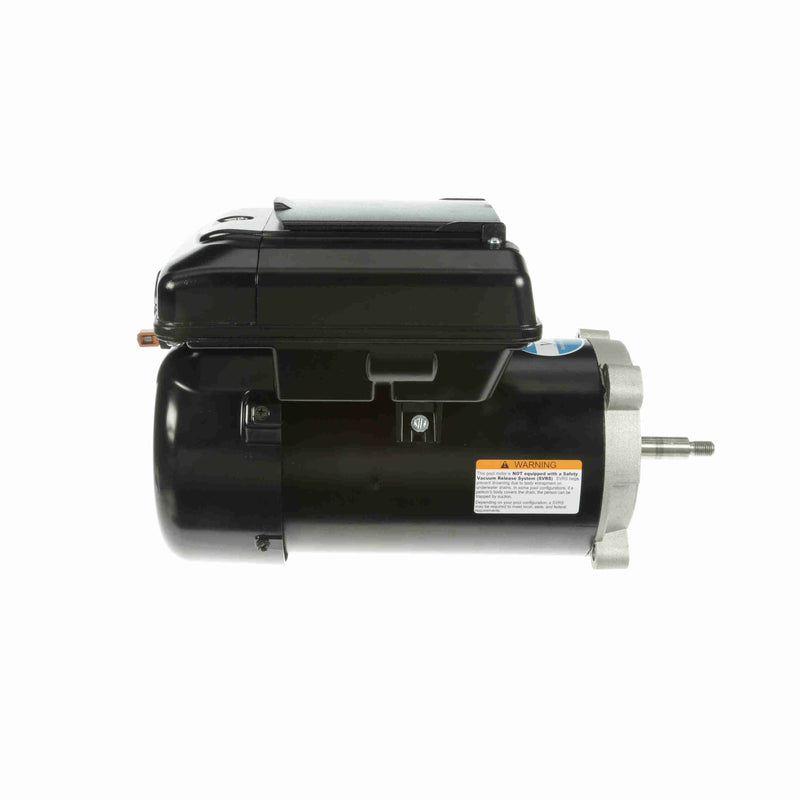

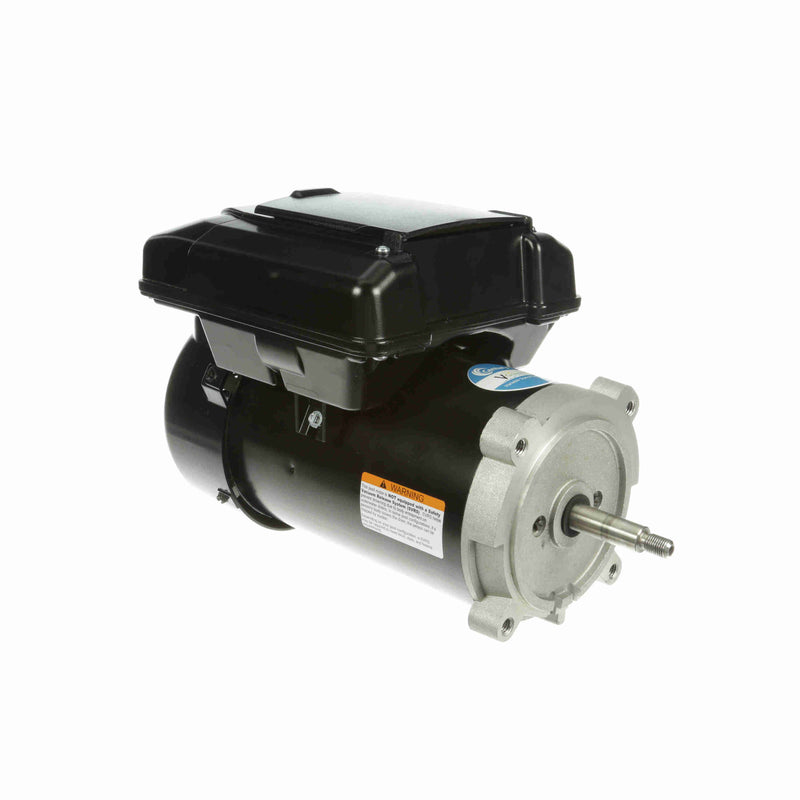

Century® VGreen® 165 ECM16CU Pool and Spa Variable Speed Pump Motor; 0.5-1.65 THP, 600-3450 RPM, 208-230 V, 56J, C-Face
- Integrated user interface
- Keypad lockout
- Digital inputs for third party automation
- VGreen® 270 user interface compatibility
- Premium efficiency
- 80% Energy savings
- Freeze protection
- Timer mode and manual mode
- Noise reduction design
- Factory default settings reset
- TEFC (Totally Enclosed, Fan-Cooled Electric Motor)
- Schedule advance
- Program memory back-up
- ECM Design
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Enclosure Design | TEFC, UV and Rain-Proof |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 10.5-10.0 A |
| Insulation Class | F |
| Item | Pool and Spa Variable Speed Pump Motor |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Manual |
| Mounting Type | C-Face |
| Number of Speed | Variable |
| Overall Length | 14.34 Inch |
| Phase | 1-Phase |
| RPM | 600-3450 |
| Series | VGreen® 165 |
| Service Factor | 1.00 |
| Shaft Diameter | 5/8 Inch |
| Standards Approvals | UL Approved |
| Sub Brand | Century® |
| Thrust Horsepower | 0.5-1.65 |
| Voltage Rating | 208-230 V |
