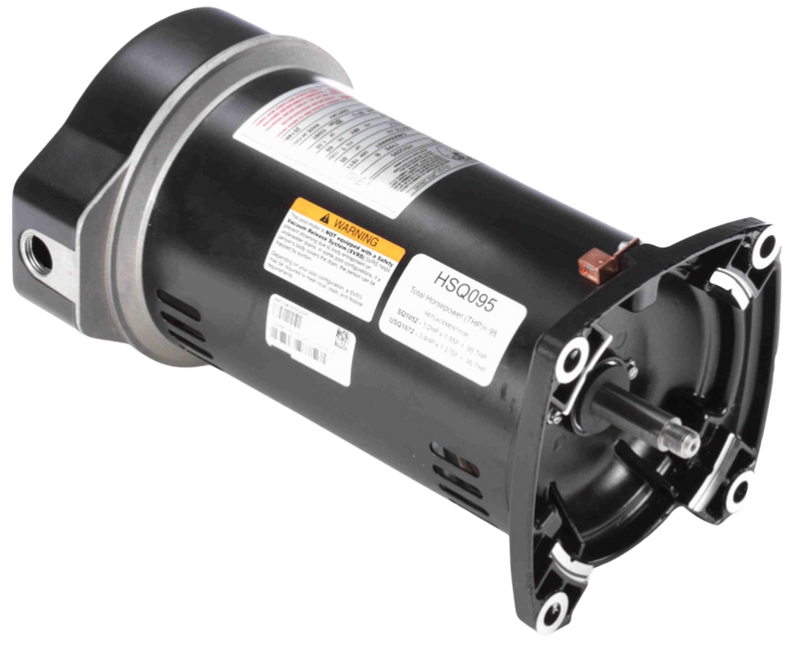

Century .95 THP Square Flange Pool and Spa Pump Motor - HSQ095


Price:
Sale price$174.99 Regular price$389.16

Pickup available at The Pool Supply Warehouse

Usually ready in 24 hours

Century® Centurion® Pro HSQ095 Square Flange Pool and Spa Pump Motor; 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
  • Professional grade
  • Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
  • PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
  • Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
  • Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
  • 203 Bearings both ends
Ambient Temperature50° C
Bearing TypeSealed Ball
BrandRegal Beloit
Diameter5-5/8 Inch
Duty CycleContinuous
Enclosure DesignOpen Drip Proof
Finish ColorSatin Black
Flange TypeSquare
Frame48Y
Frequency Rating60 Hz
Full Load Amps12.2/6.1 A
Insulation ClassB
ItemPool and Spa Pump Motor
Motor DesignCapacitor Start
Motor Shaft RotationCCWPE
Motor Thermal ProtectionAuto
Number of Speeds1-Speed
Overall Length12.03 Inch
Phase1-Phase
RPM3450
SeriesCenturion® Pro
Service Factor1.00
Shaft DesignThreaded
Shaft Diameter5/8 Inch
Shaft Material303 Stainless Steel
Standards ApprovalsUL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
Sub BrandCentury®
Thrust Horsepower0.95
TypeC
Voltage Rating115/230 V
