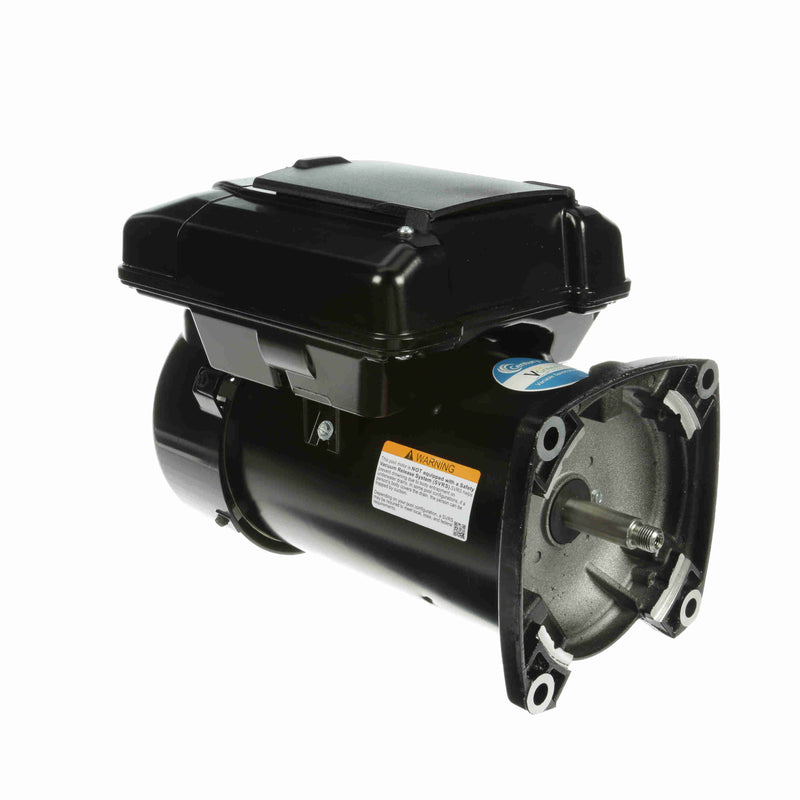

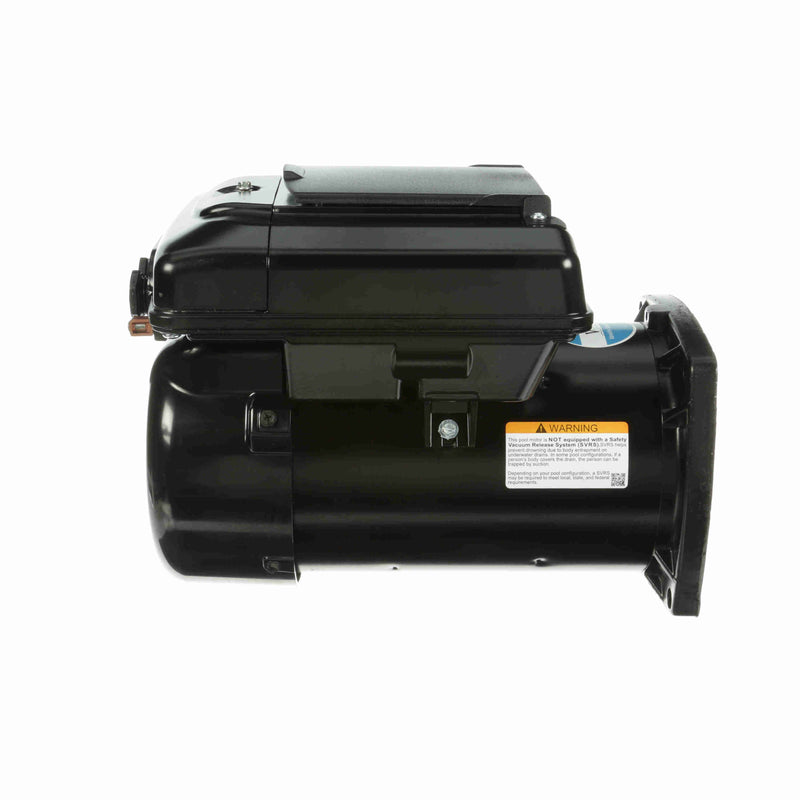

VGreen® 1.65 HP Square Flange Variable Speed Motor

Save $398.85
CenturySKU: ECM16SQU

Price:
$459.89 $858.74
FRAME - 56J SQUARE FLANGE
The Century® V Green® 165 variable speed motor is a durable TEFC replacement motor designed to deliver premium energy savings from 40 percent to 80 percent versus a standard single speed motor.

REPLACE ANY MOTOR WITH A V GREEN® 165 MOTOR
The V Green 165 motor can replace any single speed motor without replacing the pump, turning any pool into a high-efficiency system that is better for the environment and lowers the cost of pool ownership.

V GREEN® MOTOR EFFICIENCY
  • Integrated user interface allows for easier and faster installation
  • Durable TEFC construction with ECM technology delivers 40 to 80 percent energy savings versus a single speed motor

FEATURES
  • Freeze Protection
  • Ball Bearing
  • TEFC
  • Rotation: CCWPE
  • Single Phase
  • 50/60 Hz
  • Full Variable Speed (600-3450 RPM)
  • Max Output of 1.65 THP
  • 303 Stainless Steel Shaft
  • Class F Insulation
  • 50°C Ambient
  • UV and Rain-Proof Enclosure
  • Digital Inputs for Third Party Automation
  • V Green 270 User Interface* Compatibility

PROGRAMMING FLEXIBILITY
The V Green® 165 variable speed motor offers three variable speeds, programmable from 600 to 3450 RPM, allowing users to easily identify and set the appropriate speeds to minimize energy consumption and lower the overall cost of pool ownership, all while maintaining the proper pool environment. The programming flexibility offered by the V Green 165 variable speed motor makes it possible for pool owners to easily identify and adjust speed and duration settings necessary to maintain their pools and to maximize energy savings.

REPLACEMENT VERSATILITY
Available in both square flange and C-face configurations, the highly versatile V Green® 165 variable speed motor can be utilized in pool pump applications ranging from 1/2 to 1.65 total horsepower. Installation on most pumps, regardless of manufacturer, is as simple as replacing a standard single speed motor. There is no additional wiring or plumbing required, thanks to the V Green motor’s integrated user interface. Equipped with digital inputs, the V Green 165 variable speed motor is even compatible with third party pool automation systems.
