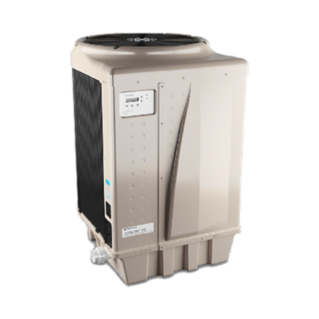

Pentair UltraTemp® 90 Almond Plastic High Performance Heat Pump; 90000 BTU, Digital Control, Titanium Tubing, 230 V, 1 PH, 60 Hz
- 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
- Highest efficiency available, meets or exceeds existing codes and standards
- BTU and efficiency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI.
- LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages - no more codes.
- AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool temperatures
- Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures
- Compatible with all automated control packages
- Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals
- Emerson Copeland scroll compressor on 60 Hz, 1-phase models
- ETL listed for safe operation
- Thermostatic expansion valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating range
Brand | Pentair |
Cabinet Depth | 33.8 Inch |
Cabinet Height | 33-1/2 Inch |
Cabinet Width | 38.9 Inch |
Coefficient of Performance | 5.7 |
Compressor Type | Scroll |
Control Type | Digital |
Electrical Input | 4.6 kW |
Flow Rate | 30 - 120 gpm |
Frequency Rating | 60 Hz |
Heat Exchanger | Titanium |
Heat Output BTUH | 90000 |
Housing Finish | Almond |
Housing Material | Plastic |
Item | High Performance Heat Pump |
Maximum Breaker Size | 50 A |
Minimum Circuit Ampacity | 40 A |
Model Number | 90 |
Phase | 1-Phase |
Refrigerant Model | R410A |
Standards Approvals | ETL Listed, AHRI Certified |
Sub Brand | Ultratemp® |
Voltage Rating | 230 V |
Water Connection | 2 Inch |
