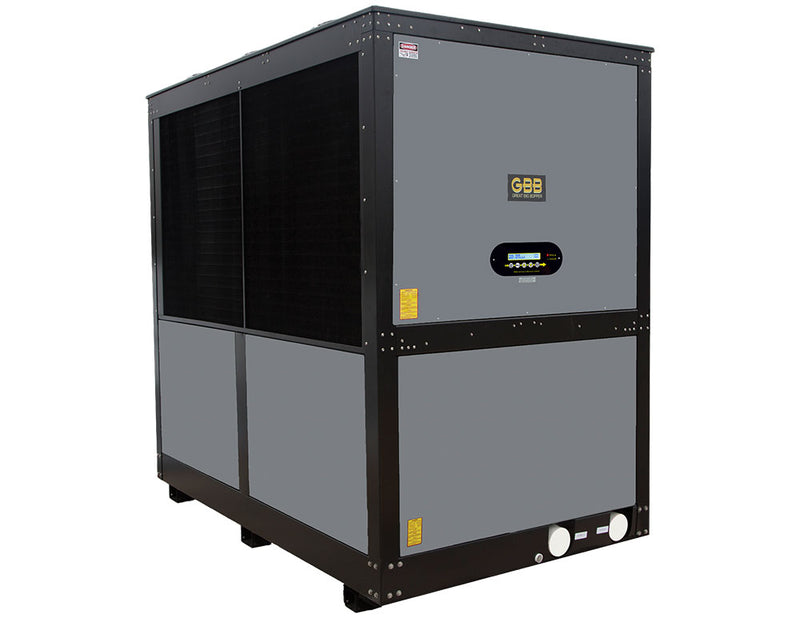

Great Big Bopper®

AquaCalSKU: GBB

Price:
$33,045

A Real Commercial Sized Heat Pump that Heats and Cools Large Commercial Swimming Pools up to a Half Million BTUs in One Single Unit

Features

ThermoLink® Titanium Heat Exchanger

  • Patented counter-flow water management system
  • Heats water faster and more efficiently
  • Impervious to chemical corrosion
  • Durability without sacrificing performance
  • Lifetime warranty

Microprocessor Controlled – with Digital Display

  • Patented counter-flow water management system
  • Accurate and easy to read bright blue display
  • On-board self diagnostics
  • Microprocessor controlled defrost cycle

ICEBREAKER® Heat & Cool

  • Extends swimming season longer than any other heat pump on the market
  • Continues to heat in freezing temperatures to minimize heat loss
  • Cool your pool to a refreshing temperature
  • Set to heat, cool or autotemp

Corrosion Resistant Cabinet

  • Rust resistant, heavy gauge G90 Galvaneal steel with 7 step Powder Coat process
  • Polymer condensate drain system
  • Polymer coated fan and coil guards

Specs 60Hz

GBB 60Hz – 208-230V 60Hz – 460V
Performance – Heating
@26.7°C Air/80% RH/26.7°C Water
@80°F Air/80% RH/80°F Water
kW Output 154.4 154.4
BTU Output 527,000 527,000
COP 6.6 6.6
kW Input 23.3 23.3
Performance – Heating
@26.7°C Air/80% RH/26.7°C Water
@80°F Air/80% RH/80°F Water
kW Output 91.7 91.7
BTU Output 313,000 313,000
COP 4.1 4.1
kW Input 22.4 22.4
Performance – Chilling
@40°C Air/26.7°C Water
@100°F Air/80°F Water
kW Absorption 106.4 106.4
BTU Absorption 363,153 363,153
kW Input 23.8 23.8
Electrical Specs
Voltage/Hz/Phase 208-230/60Hz/3ph 460V/60Hz/3ph
Minimum Circuit Ampacity 134.6 60.9
Recommended Fuse Size 150 80
Maximum Fuse Size 150 80
Pool Water Flow
Minimum/Maximum l/min 454/1059 454/1059
Minimum/Maximum gpm 120/280 120/280
Pressure Drop/Pool Water @568 l/min 0.12 bar 0.12 bar
Pressure Drop/Pool Water @150 gpm 1.8 PSI 1.8 PSI
Pool Water Connections 4″ U.S. 4″ U.S.
Refrigerant Type R410A R410A
Physical Specs
Weight (lbs.) 1,540 1,540
Weight (kg) 700 700
Length x Width x Height (in.) 90″ x 54″ x 86″ 90″ x 54″ x 86″
Length x Width x Height (cm) 229 x 138 x 219 229 x 138 x 219

Specs 50Hz

GBB 50Hz – 380-415V
Performance – Heating
@26.7°C Air/80% RH/26.7°C Water
@80°F Air/80% RH/80°F Water
kW Output 123.7
BTU Output 422,000
COP 6.8
kW Input 18.1
Performance – Chilling
@40°C Air/26.7°C Water
@100°F Air/80°F Water
kW Output 73.3
BTU Output 250,000
COP 4.1
kW Input 17.9
kW Absorption 91.3
BTU Absorption 311,516
kW Input 21.2
Electrical Specs
Voltage/Hz/Phase 380-415V/50Hz/3ph
Minimum Circuit Ampacity 68.2
Recommended Fuse Size 80
Maximum Fuse Size 80
Pool Water Flow
Minimum/Maximum l/min 454/1059
Minimum/Maximum gpm 120/280
Pressure Drop/Pool Water @568 l/min 0.12 bar
Pressure Drop/Pool Water @150 gpm 1.8 PSI
Pool Water Connections 4″ U.S.
Refrigerant Type R410A
Physical Specs
Weight (lbs.) 1,540
Weight (kg) 700
Length x Width x Height (in.) 90″ x 54″ x 86″
Length x Width x Height (cm) 229 x 138 x 219
