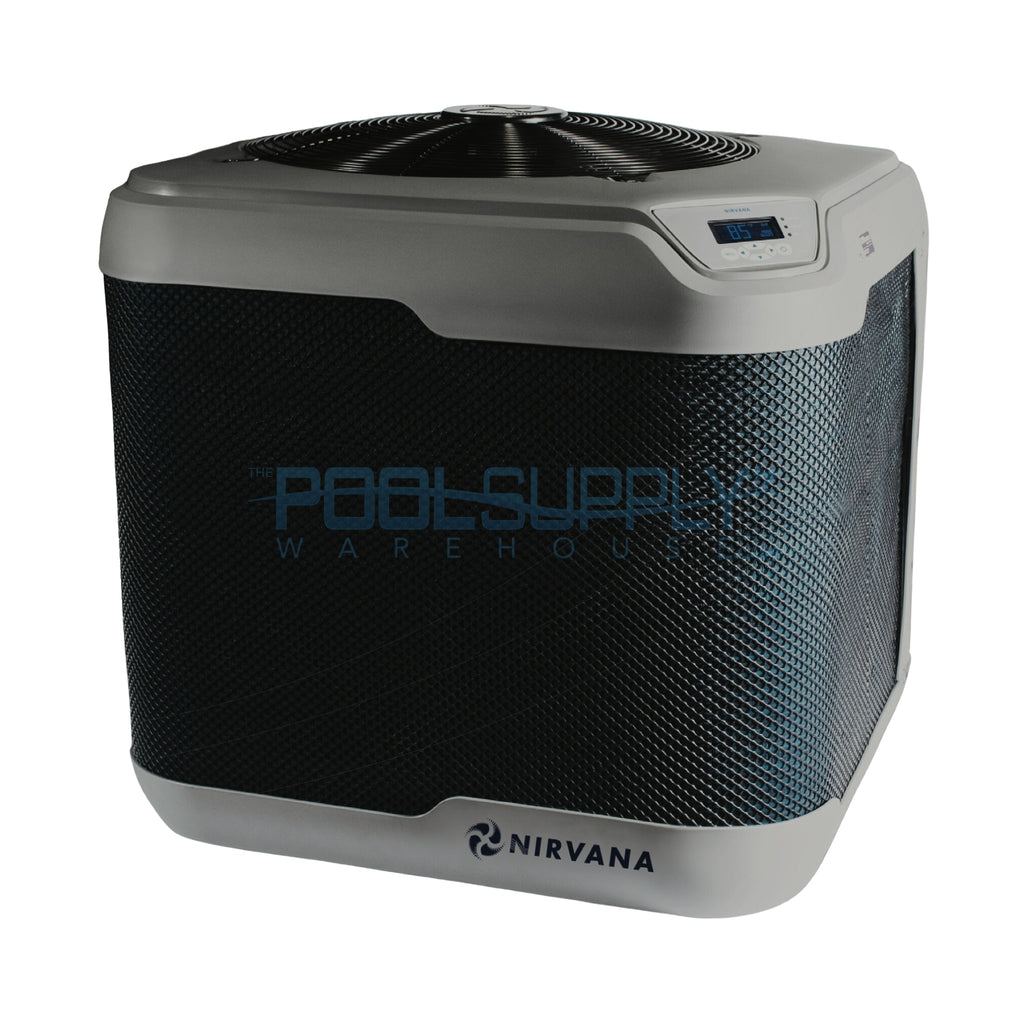

Nirvana Heat Pump 85K Ahri Smart Fan - FC-85VF

NirvanaSKU: FC-85VF

Your inquiry was submitted successfully. You can expect to hear from us shortly. To expedite the quoting process plesae create an account.

High quality Components

At Nirvana, the quality of our products is a priority. Our goal is to provide a worry-free experience. Designed to perform even in the northern climes, the units are manufactured with high-end parts that allow for an exceptionally long product life. A Corrosion protection coating is also applied inside the machine to ensure the proper functioning of components overtime.

Extremely quiet.

The pursuit of quiet operation of our heat pumps is a constant endeavour for Nirvana, several innovations are already included in our design to reduce the noise level. The compressor’s acoustic cover, the design of the fan blades and the reinforced composite cabinet substantially limits the noise nuisance. That being said, the Nirvana heat pumps maintain a sound level that varies from 53 to 57 decibels.

Precise and user-friendly digital Control Panel.

The Nirvana digital control panel allows you to adjust temperature of the pool water with precision, thus ensuring a constant water temperature while maximising the energy efficiency of the heat pump. The Nirvana heat pump is also compatible with pool management systems or with our wireless control option.

Functional and Aesthetic design.

In addition of its role of noise reduction, the reinforced composite casing of the Nirvana heat pump offers several advantages. Specially designed for an easy maintenance, it was also conceived to allow a quick and simple installation. The casing won’t fade, is corrosion resistant and is of unparalleled robustness. It is so well built that we provide a 15 years warranty on it.

TECHNICAL DATAFC SERIESFC SERIES SMART FAN TECHNOLOGY (100-120-140)
MODELSFC45FC55FC70FC85FC100FC120FC140
(80/80/80 – AHRI) 1BTU41 00056 00071 00085 00095 000120 000138 000
COP5.77.06.86.86.46.26.0
(80/63/80 – AHRI) 1BTU39 00053 00067 00081 00091 000111 000132 000
COP5.46.86.56.66.26.05.8
(50/63/80 – AHRI) 1BTU26 00037 00046 00055 00063 00077 00092 000
COP3.84.64.54.74.34.24.2
COMBINED WITH A SILENSOR PUMPBTU45 00060 00073 00090 00096 500116 000138 500
COP6.17.06.86.86.46.05.9
REFRIGERANT   R410A
MINIMUM / MAXIMUM BREAKER20/3020/3030/3030/4040/5040/5050/60
AMPS910.312.315.517.523.727.5
DECIBEL AT 10 M44424242434345
VENTILATION26’’ 1 SPEED26’’ VARIABLE SPEED SMART FAN
HEAT EXCHANGERTITANIUM-DOUBLE COIL
AMPSPASSIVE (40F)
CONTROL BOARDDIGITAL 4 LINES X 20 CHARACTERS
COMPRESSOR TYPERotarySCROLL
VOLTAGE240V / 6 0HZ / 1 PHASE
CABINETINJECTED POLYPROPYLENE COMPOSITE REINFORCED WITH FIBERGLASS
WATER FLOW (GPM)20-8020-8026-8032-8040-8040-8040-80
DIMENSIONS (INCHES) (W X L X H)39 X 37 X 3039 X 37 X 3039 X 37 X 3839 X 37 X 3839 X 37 X 3839 X 37 X 4239 X 37 X 42
WEIGHT (LBS)185191222241245250255
WATER CONNECTION2” – QUICK CONNECT FITTINGS – INCLUDED
POOL DIMENSIONSABOVE GROUND12’-15’-18’15’-18’-21’21’-24’24’ – 2 7’27’N/AN/A
INGROUND10 X 1610’ X 20’12’ X 24’14’ X 28’16’ X 30’16’ X 34’18’ X 36’
 10’ X 20’12’ X 24’14’ X 28’16’ X 30’16’ X 32’18’ X 36’20’ X 40’
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
