Pentair Ultratemp 110 High Performance 108K BTU Heat Pump - 460962


Your inquiry was submitted successfully. You can expect to hear from us shortly. To expedite the quoting process plesae create an account.

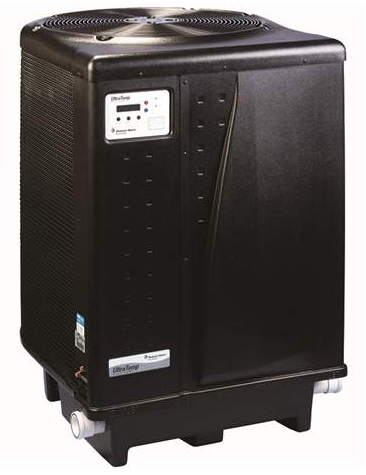

Pentair Ultratemp(R) 110 Black Plastic High Performance Heat Pump; 108000 BTU, Digital Control, Titanium Tubing, 230 V, 1 PH, 60 Hz
  • 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
  • Highest efficiency available, meets or exceeds existing codes and standards
  • BTU and efficiency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI.
  • LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages - no more codes.
  • AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool temperatures
  • Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures
  • Compatible with all automated control packages
  • Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals
  • Emerson Copeland scroll compressor on 60 Hz, 1-phase models
  • ETL listed for safe operation
  • Thermostatic expansion valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating range
Cabinet Depth33.8 Inch
Cabinet Height45-1/2 Inch
Cabinet Width38.9 Inch
Coefficient of Performance6
Compressor TypeScroll
Control TypeDigital
Electrical Input5.3 kW
Flow Rate30 - 120 gpm
Frequency Rating60 Hz
Heat ExchangerTitanium
Heat Output BTUH108000
Housing FinishBlack
Housing MaterialPlastic
ItemHigh Performance Heat Pump
Maximum Breaker Size50 A
Minimum Circuit Ampacity42 A
Model Number110
Refrigerant ModelR410A
Standards ApprovalsETL Listed, AHRI Certified
Sub BrandUltratemp®
Voltage Rating230 V
Water Connection2 Inch
