Stenner 1/4" Classic 45 45M3 Single Head Adjustable Chemical Injection Pump - 45MJL3A2STAA

Save 39%
STENNER PUMP COMPANYSKU: 45MJL3A2STAA

Your inquiry was submitted successfully. You can expect to hear from us shortly. To expedite the quoting process plesae create an account.

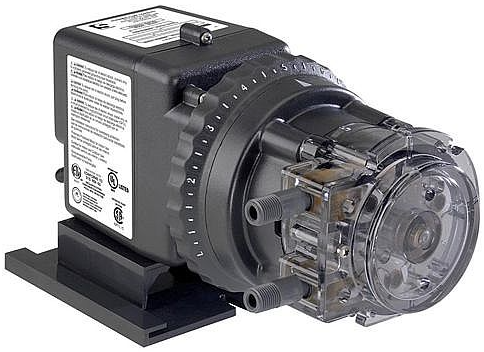

Stenner Pumps 45MJL3A2STAA Classic 45 45M3 Single Head Adjustable Chemical Injection Pump; 1/4 Inch, 1.1 - 22 gpd, Polycarbonate, 120 V-60 Hz, 0-25 psi
  • 3-point roller design assists in anti-siphon protection
  • The pump is built with three detachable components - the motor, feed rate control and the pump head that can be separated without tools
  • Continuous duty cycle
  • Shaded pole, Class B motor
  • HDPE pump head rollers
  • Oil impregnated sintered bronze roller bushing
  • SJTOW power cord
  • Pellathane® CV Duckbill with Versilon™ tube
  • Polypropylene pump head latches
  • Stainless steel fasteners
  • PP or type 1 rigid PVC connecting nuts
  • Pump head requires no valves, allows for easy maintenance
  • NSF listed PP or type 1 rigid PVC body with type 1 rigid PVC cap suction line strainer
  • UV black tubing
  • Self priming against maximum working pressure, foot valve not required
  • Pump does not lose prime or vapor lock
  • Pumps off-gassing solutions and can run dry
  • Output volume is not affected by back pressure
  • Injection check valve included with models rated up to 100 psi (6.9 bar)
  • Easy and fast tube replacement without tools with the QuickPro® pump head
  • Pump tubes and pump heads interchange between models
Amperage Rating1.7 A
ApplicationFor water conditioning, animal health, industrial process, water and wastewater, cooling towers, legionella prevention in cooling towers, sprinkler head cleaning in irrigation and horticulture and plating bath treatment in the metal finishing industry, di
BrandStenner Pumps
Cord TypeSJTOW, NEMA 5/15
Dimension10.6 Inch L x 5.3 Inch W x 6 Inch H
Flow Rate1.1 - 22 GPD
Frequency Rating60 Hz
Housing MaterialPolycarbonate
HP1/30
IncludesAccessory Kit
ItemAdjustable Chemical Injection Pump
Maximum Suction Lift25 Ft. Vertical Lift
Model Number45M3
Motor RPM26
Operating Temperature125° F
Phase1-Phase
Pressure Rating0-25 psi
SeriesClassic 45
Standards ApprovalsUL Listed, CSA Certified, WQA Certified according to ANSI/NSF 61, Conforms to ANSI/NSF 50
Suction Size1/4 Inch
TypeSingle Head
Voltage Rating120 V
