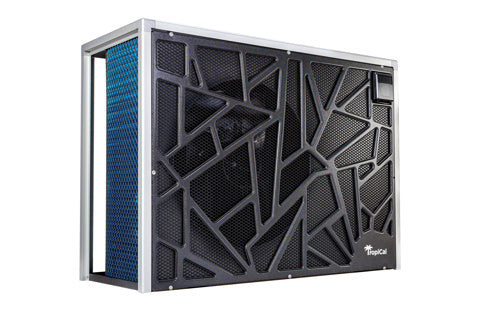

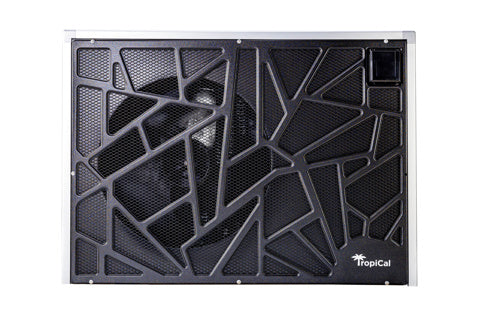

TropiCal T100 Inverter Heat Pump-T100 (Heat and Cool)

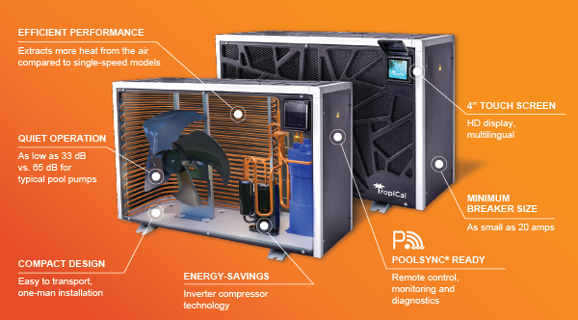

Experience the next generation of pool heating with the New TropiCal Heat Pump, AquaCal’s latest advancement in technology. Equipped with full inverter technology, the TropiCal adjusts its performance to maintain the perfect pool temperature while minimizing energy use and noise.

Whether it’s rapid heating, energy efficiency, or a balanced solution you’re after, the TropiCal delivers with three smart operating modes designed to meet a variety of needs.

Manage your heat pump effortlessly with the intuitive 4-inch color touch screen, or remotely via our secure PoolSync mobile app.

What’s Inverter technology?

Inverter technology is like cruise control for your pool’s heating system. Instead of the heat pump constantly turning on and off (like older models), it smoothly adjusts to maintain the perfect temperature. This means your pool stays at the ideal temperature, using less energy and making less noise.

PoolSync WiFi Built-In

Now you can control your heat pump right through your smartphone. Change the mode to heat, cool or autotemp, and set your temperature through the PoolSync app.



Specs

Model	T100
BTUs (water temp/ambient air/relative humidity)
80/80/80 Boost Mode	108,000
80/80/63 Boost Mode	104,000
80/50/63 Boost Mode	47,500
kW Output	31.7 - 13.9
Coefficient of Performance (water temp/ambient air/relative humidity)
80/80/80 Boost Mode	5.0
80/80/63 Boost Mode	4.8
80/50/63 Boost Mode	4.2
80/80/80 Eco Mode	10.1
Refrigerant	R32
Electrical
Heat or Heat & Cool	H & C
kW Input	6.3
Voltage/Hz/Phase	230V/60Hz/1
Max Fuse Size (Breaker)	40
Minimum Circuit Ampacity	27.3
Recommended Breaker Size (Recommendation only. Please consult a licensed electrician)
Water Flow *Exceeding the maximum flow rate required a bypass. Damage due to excessive water flow will void the warranty
Min/Max (gpm)	30/70
Physical
Weight (lbs)	207lbs/ 111 kg
Length x Width x Height (in)	47” x 21” x 35”
Length x Width x Height (cm)	120 x 54 x 89
Shipping
Weight (lbs)	245lbs/111kg
Length x Width x Height (in)	48” x 22” x 42”
Length x Width x Height (cm)	122 x 56 x 107
Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity
