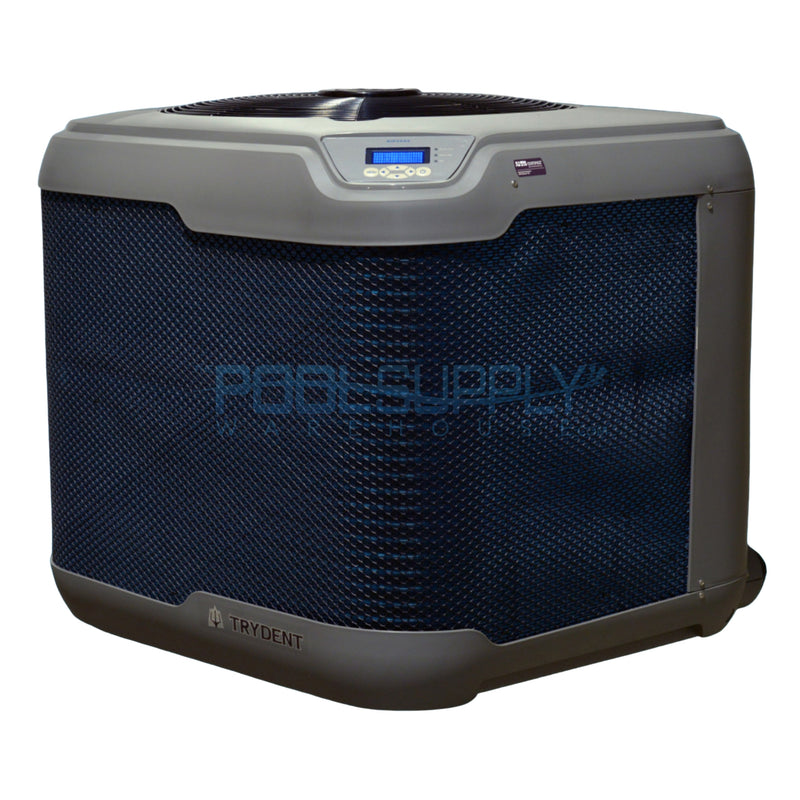

Trydent Heat Pump 30K Btu, 120V Plug In - TR30SF

TrydentSKU: TR30SF

Your inquiry was submitted successfully. You can expect to hear from us shortly. To expedite the quoting process plesae create an account.

High quality Components

At Nirvana, the quality of our products is a priority. Our goal is to provide a worry-free experience. Designed to perform even in the northern climes, the units are manufactured with high-end parts that allow for an exceptionally long product life. A Corrosion protection coating is also applied inside the heat pumps to ensure the proper functioning of components over time.

Extremely quiet.

The pursuit of quiet operation of our heat pumps is a constant endeavour for Nirvana, several innovations are already included in our design to reduce the noise level. The compressor’s acoustic cover, the design of the fan blades and the reinforced composite cabinet substantially limits the noise nuisance. That being said, the Nirvana heat pumps maintain a sound level that varies from 53 to 57 decibels.

Precise and user-friendly digital Control Panel.

The Nirvana digital control panel allows you to adjust temperature of the pool water with precision, thus ensuring a constant water temperature while maximising the energy efficiency of the heat pump. The Nirvana heat pump is also compatible with pool management systems or with our wireless control option.

Functional and Aesthetic design.

In addition of its role of noise reduction, the reinforced composite casing of the Nirvana heat pump offers several advantages. Specially designed for an easy maintenance, it was also conceived to allow a quick and simple installation. The casing won’t fade, is corrosion resistant and is of unparalleled robustness. It is so well built that we provide a 15 years warranty on it.

TECHNICAL DATAAbove Ground ModelsInground
MODELSTR30 – 110VoltTR45TR65-70TR95TR115TR135TR135HC
(80/80/80 – AHRI) 1BTU27 50041 000TBA95 000115 000135 000133 000
COP6.15.7 6.06.05.95.9
(80/63/80 – AHRI) 1BTU26 00039 000 90 000111 000129 000128 000
COP5.95.4 5.85.85.85.8
(50/63/80 – AHRI) 1BTU18 00026 000 00078 00085 00084 000
COP4.13.8 4.14.14.14.1
COMBINED WITH A SILENSOR PUMPBTU31 50045 000 95 000115 000133 000132 000
COP6.46.1 6.16.05.95.9
REFRIGERANT   R410A
MINIMUM / MAXIMUM BREAKER2020/30TBA40/5040/5050/6050/60
AMPS10.710.3TBA15.5117.5723.727.5
DECIBEL AT 10 M4442TBA42434345
VENTILATION26’’ SINGLE SPEED 825 RPM
HEAT EXCHANGERTITANIUM-DOUBLE COIL
AMPSPASSIVE (46F)
CONTROL BOARDDIGITAL 4 LINES X 20 CHARACTERS
COMPRESSOR TYPERotarySCROLL
VOLTAGE120V plug in240V / 60HZ / 1 PHASE
CASINGINJECTED POLYPROPYLENE COMPOSITE REINFORCED WITH FIBERGLASS
WATER FLOW (GPM)20-8020-8026-8032-8040-8040-8040-80
DIMENSIONS (INCHES) (W X L X H)39 X 37 X 3039 X 37 X 3039 X 37 X 3839 X 37 X 3839 X 37 X 3839 X 37 X 4239 X 37 X 42
WEIGHT (LBS)185191222241245250255
WATER CONNECTION2” – QUICK CONNECT FITTINGS – INCLUDED
POOL DIMENSIONSABOVE GROUND12’-15’-18’15’-18’-21’21’-24’24’ – 2 7’27’N/AN/A
INGROUND10 X 1610’ X 20’12’ X 24’14’ X 28’16’ X 30’16’ X 34’18’ X 36’
 10’ X 20’12’ X 24’14’ X 28’16’ X 30’16’ X 32’18’ X 36’20’ X 40’
