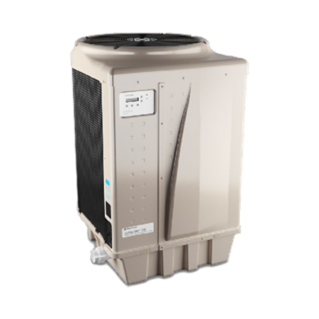

Pentair Ultratemp(R) 110 Almond Plastic High Performance Heat Pump; 108000 BTU, Digital Control, Titanium Tubing, 230 V, 1 PH, 60 Hz
- 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
- Highest efficiency available, meets or exceeds existing codes and standards
- BTU and efficiency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI.
- LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages - no more codes.
- AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool temperatures
- Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures
- Compatible with all automated control packages
- Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals
- Emerson Copeland scroll compressor on 60 Hz, 1-phase models
- ETL listed for safe operation
- Thermostatic expansion valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating range
| Brand | Pentair |
| Cabinet Depth | 33.8 Inch |
| Cabinet Height | 45-1/2 Inch |
| Cabinet Width | 38.9 Inch |
| Coefficient of Performance | 6 |
| Compressor Type | Scroll |
| Control Type | Digital |
| Electrical Input | 5.3 kW |
| Flow Rate | 30 - 120 gpm |
| Frequency Rating | 60 Hz |
| Heat Exchanger | Titanium |
| Heat Output BTUH | 108000 |
| Housing Finish | Almond |
| Housing Material | Plastic |
| Item | High Performance Heat Pump |
| Maximum Breaker Size | 50 A |
| Minimum Circuit Ampacity | 42 A |
| Model Number | 110 |
| Phase | 1-Phase |
| Refrigerant Model | R410A |
| Standards Approvals | ETL Listed, AHRI Certified |
| Sub Brand | Ultratemp® |
| Voltage Rating | 230 V |
| Water Connection | 2 Inch |
